BAG DUMP STATIONS
Klausen Process Machinery’s Bag Dump Stations are engineered to efficiently capture dust generated during the manual unloading of powders and bulk solids from a range of handheld bags and containers, returning the material to the hopper and minimizing waste. Bag Dump Stations prevent plant contamination, and reduce the need for cleaning remote dust collection sites.
Click and drag product to rotate.
Product overview
Learn everything you need to know about Flexicon Bag Dump Stations.
Flexicon Bag Dump Stations (also known as sack tip stations or bag break stations) are designed to safely and efficiently manage dust during the manual unloading of powders and bulk solids. Each unit features a high-velocity vacuum fan and dual cartridge filters tailored to the application, ensuring clean operation and worker protection.

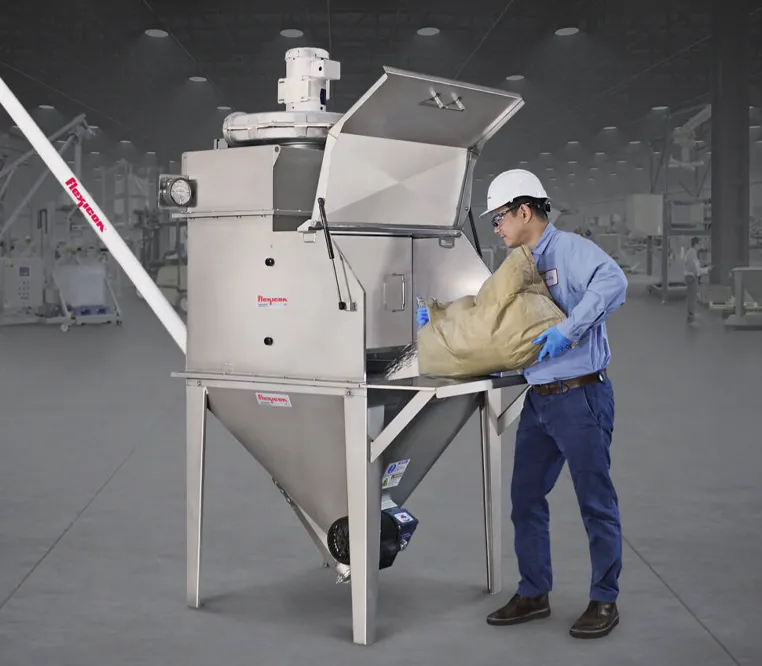

Simple Operation

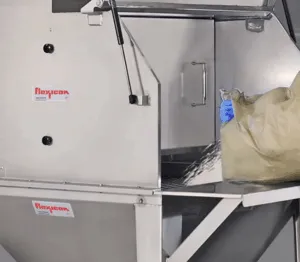

Open the dust hood door, activate the fan, and dump material through the hopper screen.

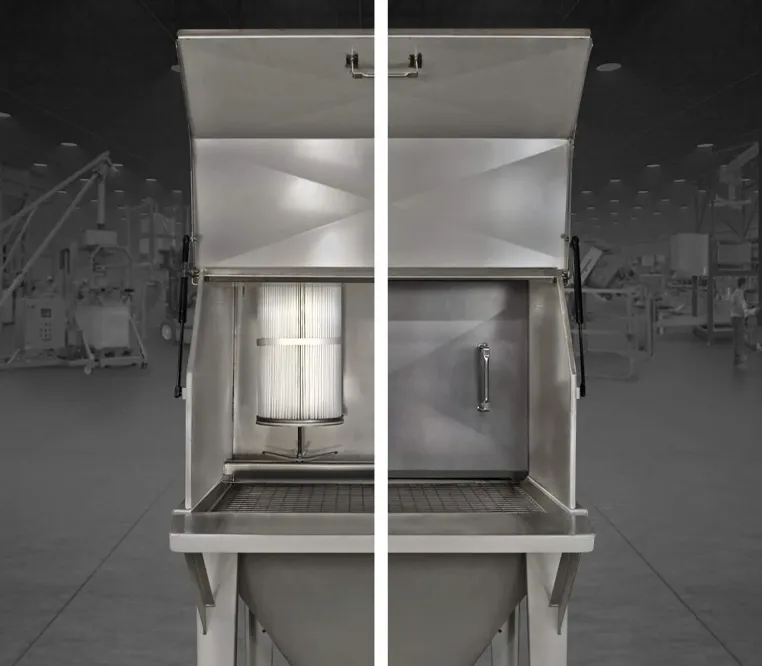

High-Efficiency Dust Capture
Vacuum fan draws airborne particles away from the operator and into cartridge filters.

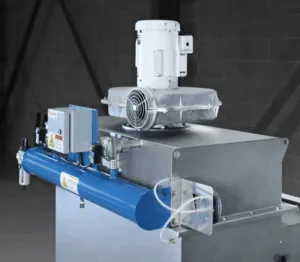

Automatic Filter Cleaning
Reverse-pulse system uses timed blasts of compressed air to dislodge dust buildup on the filters returning material to the hopper.

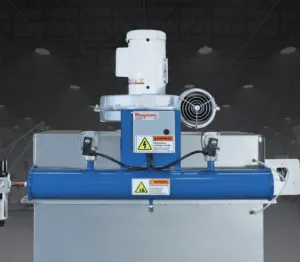

Continuous Performance
Alternating filter pulse maintains uninterrupted dust collection and system efficiency.
Worker Safety & Plant Cleanliness
Dust is collected at the source, minimizing contamination and material loss.
BAG COMPACTORS
Flexicon Bag Dump Stations can be equipped with optional Bag Compactors, which significantly reduce waste volume while containing dust. A bag infeed chute through the side wall of the dust hood allows empty bags to be fed directly into the bag compactor by the operator causing dust generated from both dumping and bag disposal to be drawn onto the Bag Dump Station’s dual cartridge filters. A pneumatic air cylinder compresses bags into a removable bin for dust-free disposal. Safety interlocks prevent operation unless both the main and infeed chute doors are closed. The Bag Compactors are offered in sizes that accommodate 50 to 80 bags, and 100 to 150 bags, depending on thickness.

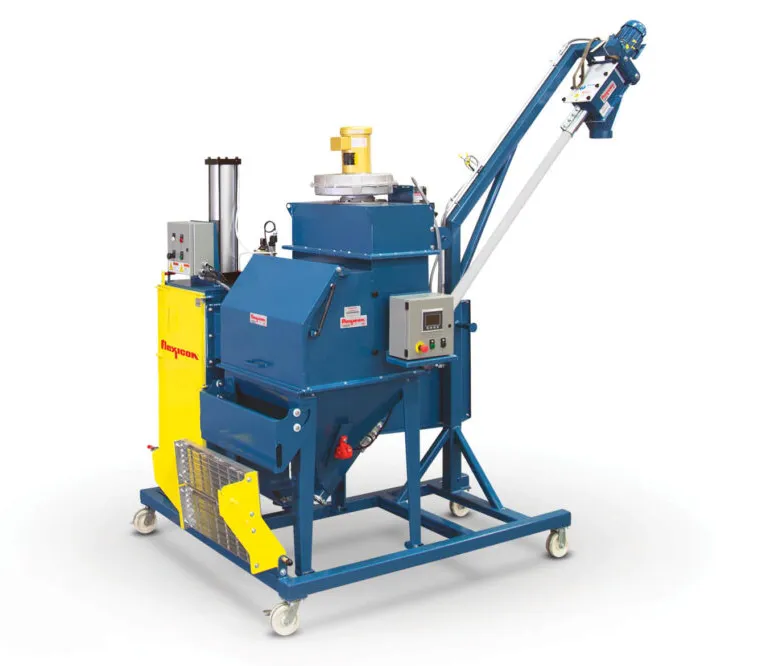

MOBILE CONFIGURATIONS
Klausen Process Machinery offers mobile Bag Dump Stations designed for effective, dust-free material handling across various plant locations. The flexibility of these mobile configurations enhances operational efficiency by enabling the equipment to serve multiple functions in different areas, reducing the need for multiple stationary units.
SANITARY CONFIGURATIONS
Sanitary bag dump stations are constructed of stainless steel and feature continuous welds with NEMA-rated enclosures making them ideal for wash-down environments.
Hopper Options
Klausen Process Machinery bag dump station hoppers are available with various outlet configurations to suit virtually any application. Some examples are:

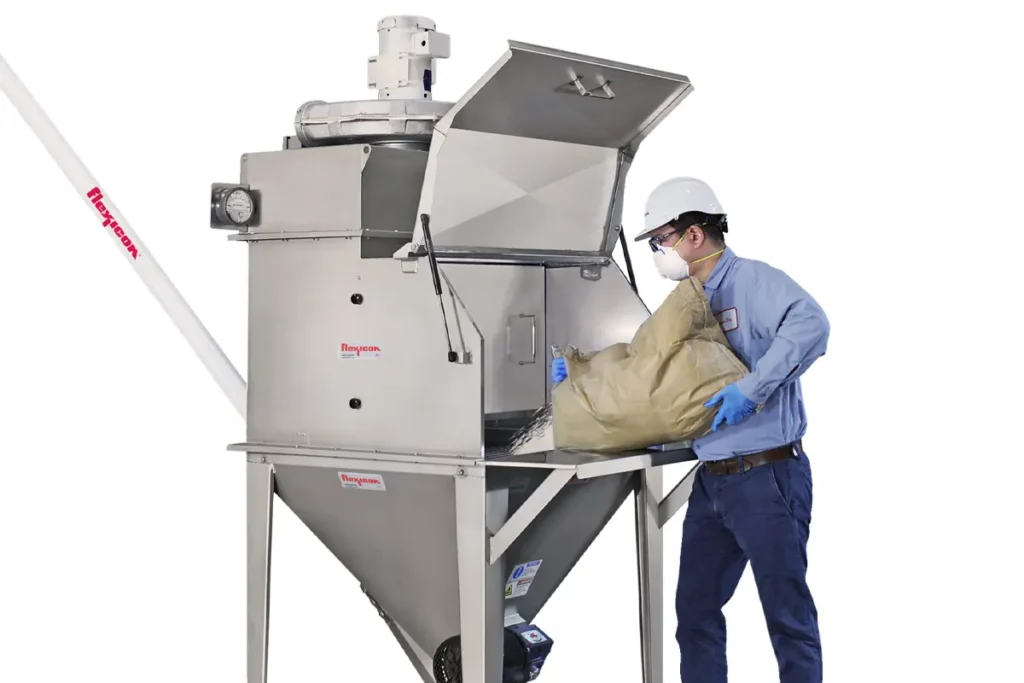

- Flexible screw conveyor charging adapters
- Non-flow-through pick-up adaptors for pneumatic conveyors
- Rotary airlock valves
- Universal flanged outlets for direct connection to process equipment
GLOVE BOX

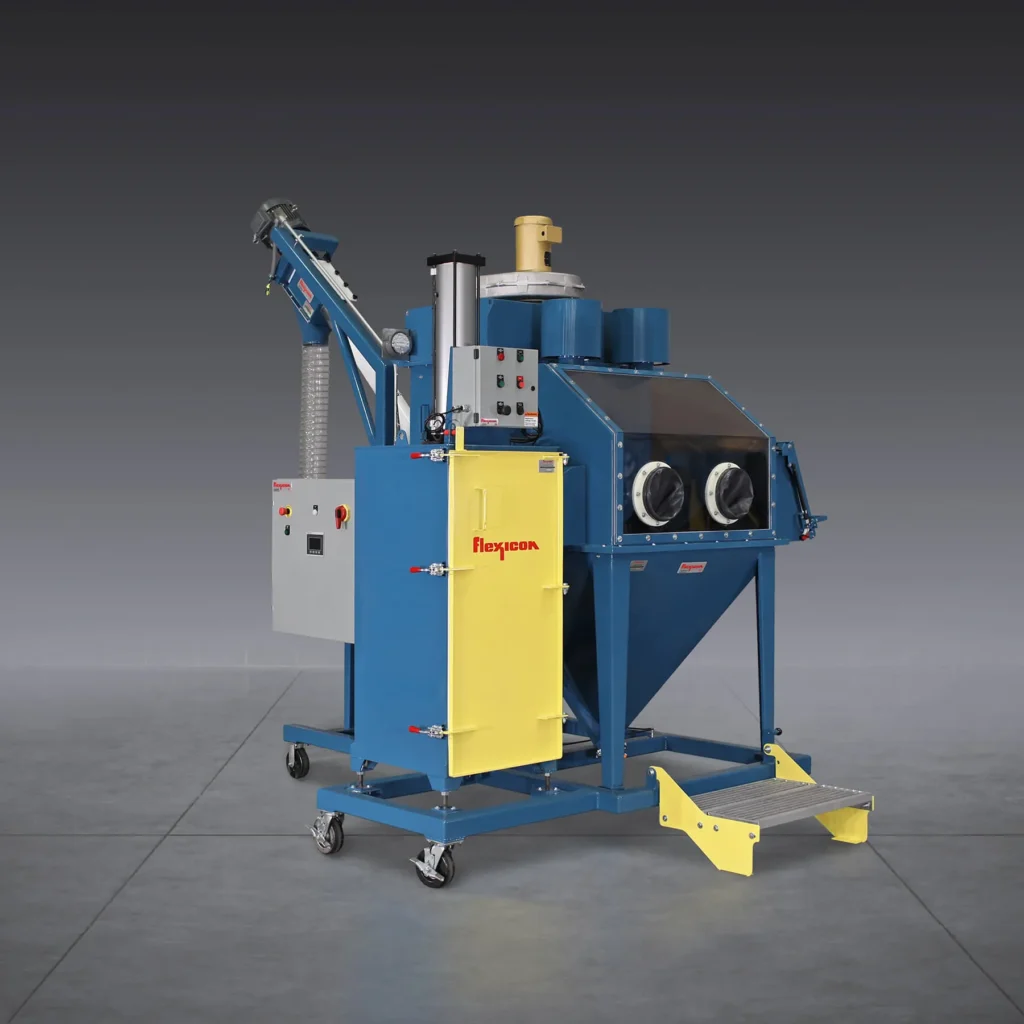

Pairing the manual bag dump station with an optional glove box creates a fully enclosed system for handling hazardous or sensitive materials. Integrated gloves allow operators to open and empty bags without direct contact, improving containment and minimizing exposure.
Product Features
Explore the standard features of the Flexicon Manual Bag Dump Station.
Draws airborne dust away from the operator through two cartridge filters. Reverse pulse jets automatically return accumulated dust on filter surfaces to the hopper.

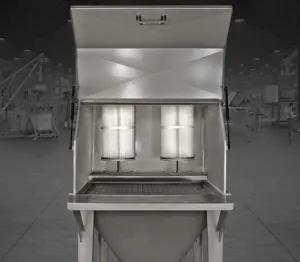

Directs the air flow from the vacuum fan ensuring efficient capture of dust from the bag dumping process.

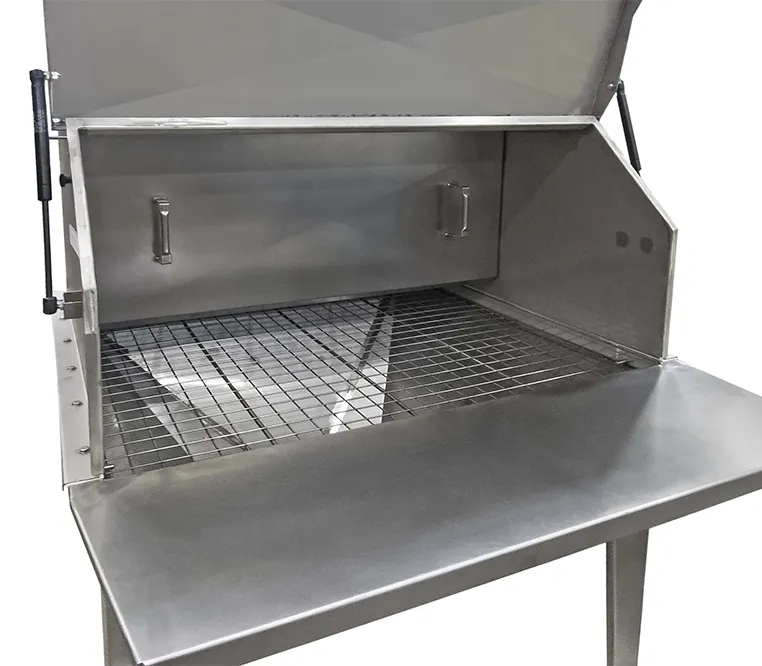

Prevents the bag and other large foreign objects from entering the product stream.

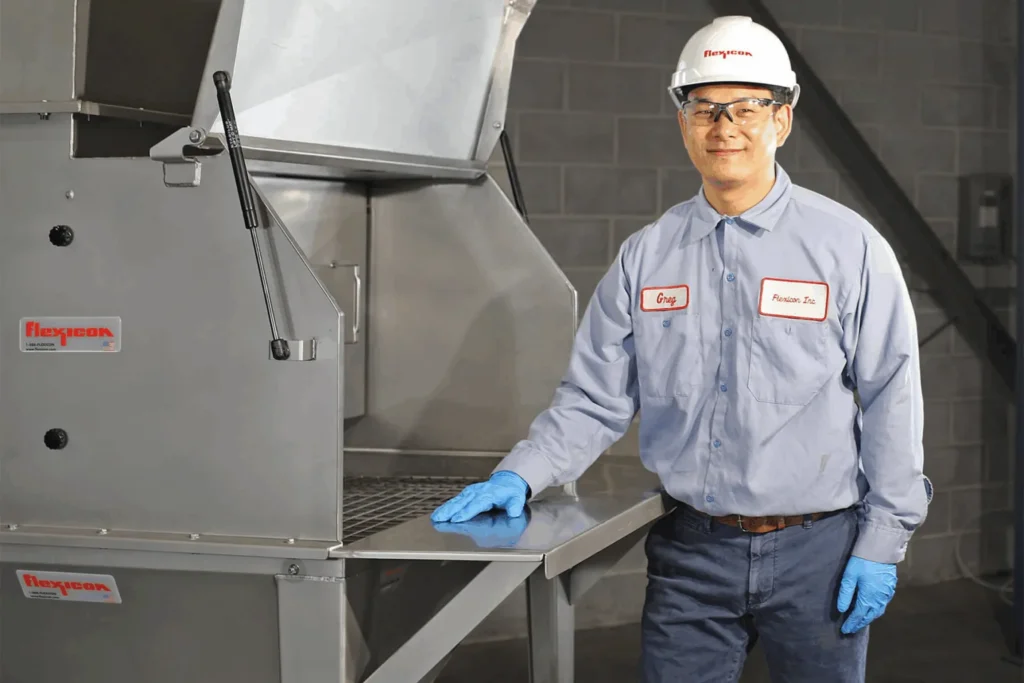

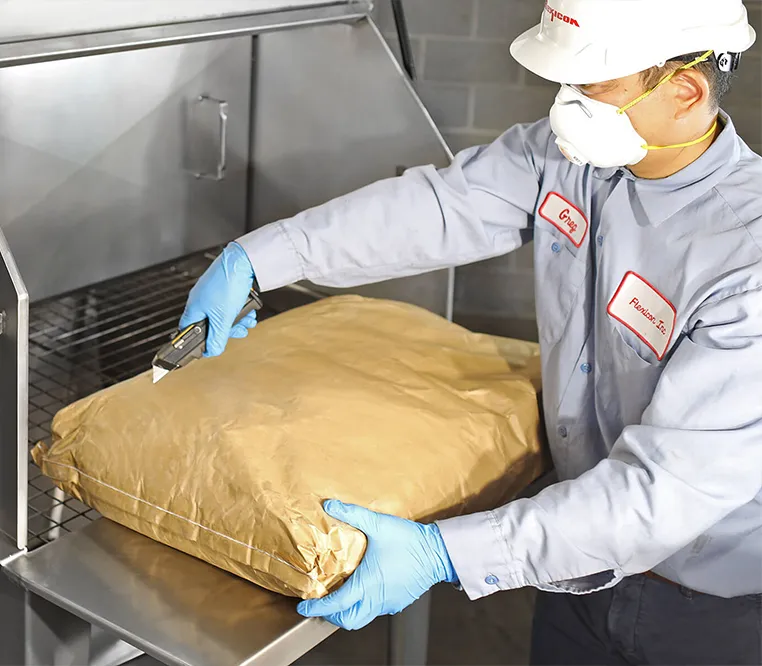

Provides a sturdy support for manual bags during the unloading process.

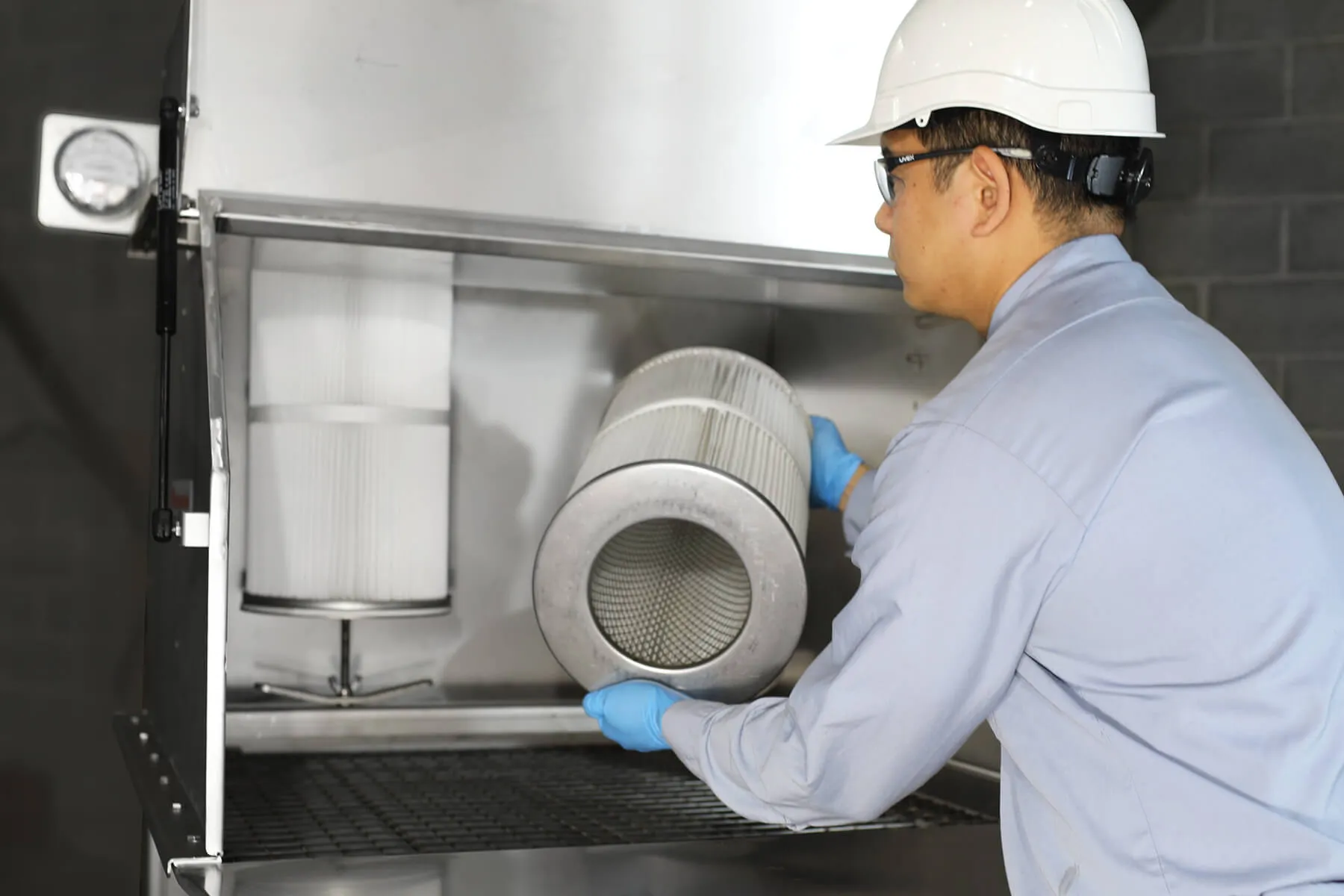

Two pleated filter cartridges optimize dust collection with maximized surface area.
Uses timer-activated solenoid valves to deliver quick bursts of compressed air, dislodging dust from cartridge filters into the hopper for continuous, efficient dust collection.
Product benefits
- Simplified Factory Cleaning: The integrated dust collection system captures airborne particles at the source, significantly reducing dust emissions and making routine cleaning faster and more effective.
- Reduced Dust Build-Up: By containing dust during material transfer, the system prevents accumulation in hard-to-reach areas, minimizing maintenance costs.
- Improved Equipment Longevity: Less dust contamination in a plant reduces wear on machinery, extending equipment life and lowering repair expenses.
- Reduced Dust Exposure:
The dust collection system and enclosed design minimize operator contact with harmful airborne particles,
protecting workers by reducing respiratory risks. - Ergonomic Handling:
Designed for ease of use, the station reduces physical strain during material dumping,
promoting safer and more comfortable material handling. - Reduce Risk of Dust Explosion:
The integrated dust collection system captures combustible particles, lowering
the potential for hazardous dust explosions in the workplace.
Bag Dump Station Configurations
Flexicon can design your bag dump station to meet your unique needs. Explore some of
the configurations we have developed for customers like you.
