BLOCK-BUSTER® Hydraulic Bulk Bag Conditioners
Product Overview
Learn everything you need to know about Flexicon Bulk Bag Dischargers.
Flexicon BLOCK-BUSTER® Hydraulic Bulk Bag Conditioners (also known as FIBC, Big Bag, and Jumbo Bag Massagers) loosen bulk solid materials that have solidified during storage or shipment, to the point where pneumatic flow promotion accessories are ineffective. The conditioner’s two hydraulic rams break up material allowing bulk bag unloaders to discharge the material through bag spouts. BLOCK-BUSTER® Bulk Bag Conditioners are available integrated into bulk bag unloading frames or are available in two models of self-standing units.
Materials Handling Equipment
Materials Handling Equipment
Learn MoreInstallation and Commissioning
Here at KPM, we place importance on the integration of infrastructure within your site. Installation and commissioning services are supplied for your machine when purchased from one of our agencies.
Learn MoreDesign and Install Pneumatic Conveying
At KPM, we design pneumatic conveying systems ensure quality systems for your production warehouse. Pneumatic systems safeguards materials from open environments by utilizing air to do so.
Learn MoreDesign and Layout
At KPM, we design pneumatic conveying systems ensure quality systems for your production warehouse. Pneumatic systems safeguards materials from open environments by utilizing air to do so.
Learn More

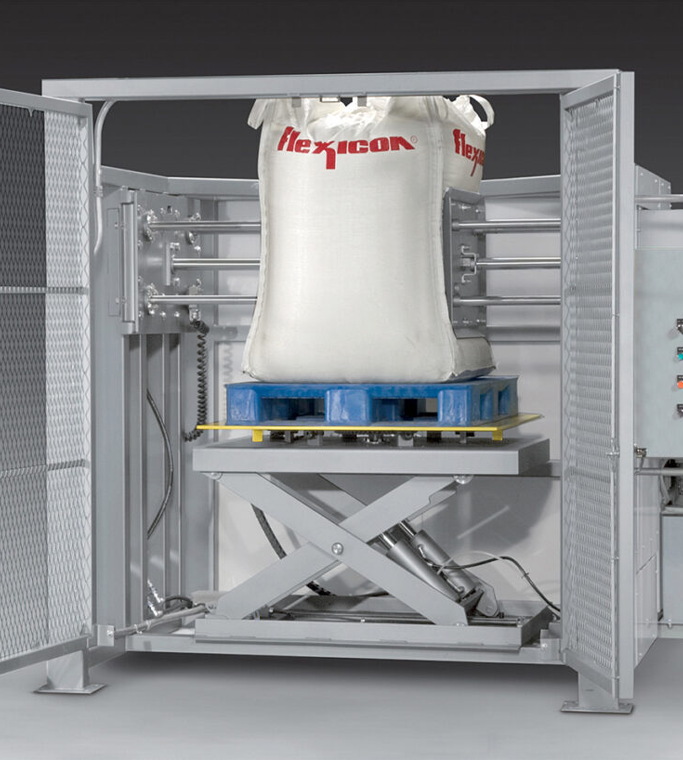

CARBON STEEL OR STAINLESS STEEL CONSTRUCTION
Flexicon bulk bag conditioners are available in carbon steel with durable industrial coatings or in stainless steel.
QUICK SHIP
- Limited to North/Central/South America and Europe
- Lead times 2-3 working weeks (following receipt of order once payment terms have been met)

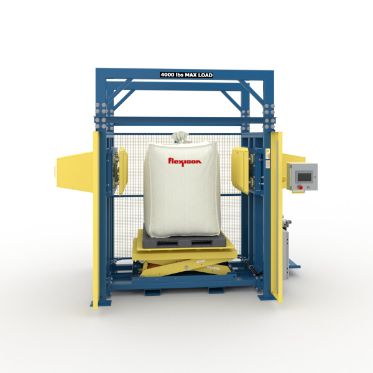

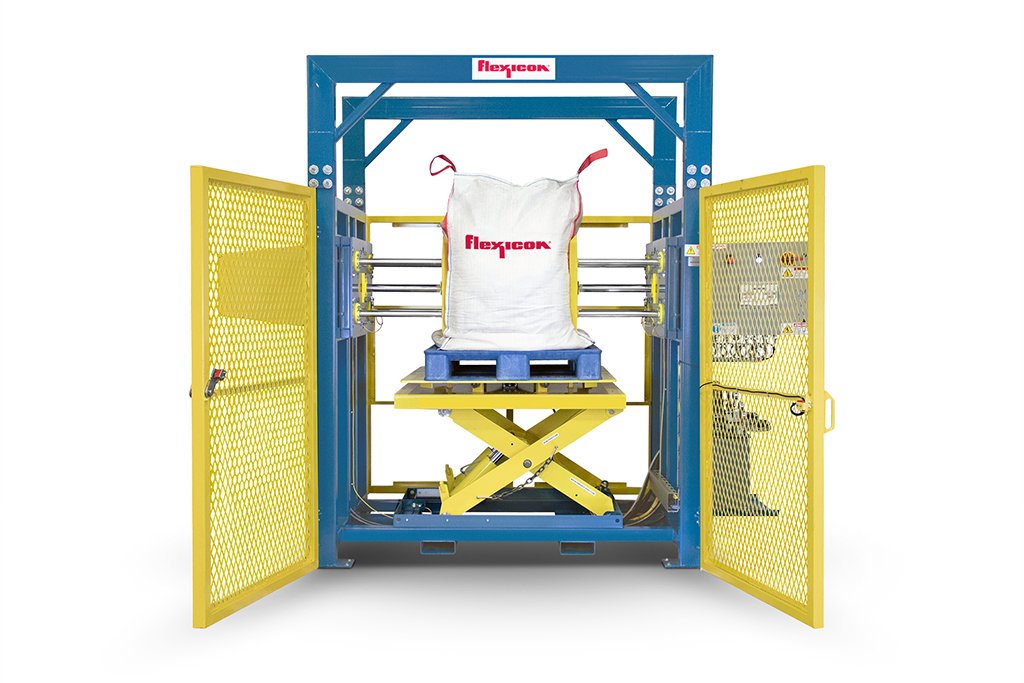

STANDARD EQUIPMENT
- Two opposing hydraulic rams with contoured conditioning plates delivering user-adjustable force
- Programmable scissor lift with turntable for conditioning of bags on all sides at all heights
- Bulk bag weight capacity of 4000 lb (1,800 kg)
- Accommodates bulk bags 36 to 72 in. (965 to 1850 mm) tall, seam widths to 36 in. (915 mm) and filled widths to 48 in. (1220 mm)
- Accommodates pallet sizes to 48 in. (1220 mm) square
- Heavy duty carbon steel frame with durable industrial coating
- Four-sided safety enclosure with hinged access doors with NEMA 4 interlock switch
- Hydraulic power unit
- UL Listed control panel, NEMA 4 (also built to CSA standards, uninspected)
Product benefits
- Eliminate Manual Bulk Bag Loosening: Reduce the possibility of injury when operators need to loosen bulk bags using manual methods such as fork trucks, baseball bats, and other ad hoc solutions.
- Fully Guarded Safety: Flexicon BULK-OUT bulk bag conditioners are equipped with a three-sided fixed safety cage. Operator access is controlled either by full-height doors or a light curtain system for enhanced safety.

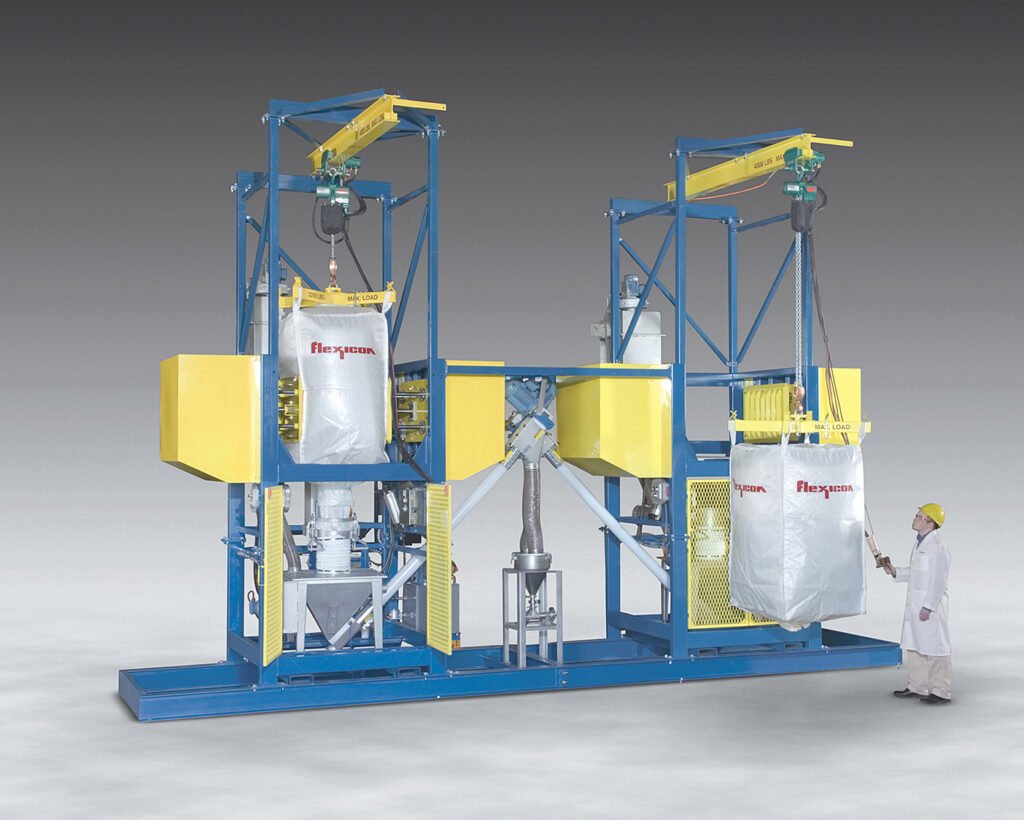

- Integrated Conditioning and Unloading: Integrating conditioning and unloading into a single system eliminates the need for separate equipment, leading to lower initial investment.
- Reduced Labor Costs: Programmable controls and hydraulic systems minimize manual intervention, decreasing labor expenses associated with material handling.
- Ensures Smooth, Uninterrupted Flow: Maintains consistency of material flow to facilitate uninterrupted downstream process
- Effective Conditioning of Solidified Materials: Equipped with hydraulic rams and variable-height turntables, conditioners effectively crush and loosen materials that have solidified during storage, ensuring a consistent material flow.
- Contoured Hydraulic Ram Plates: Crush and loosen solidified bulk materials safely and easily.
- Automated Controls: Flexicon bulk bag conditioners are equipped with automated controls that simplify the conditioning process. An operator places a bag into the conditioner, and the system automatically completes the full conditioning cycle without requiring further intervention, ensuring consistent and efficient operation.
Bulk Bag Conditioner Configurations
Flexicon offers a range of Bulk Bag Discharger models, each designed to support
a specific method of bag loading. Systems can be customized with performance
upgrades to meet your operational needs efficiently and cost-effectively
