DRUM/BOX/
CONTAINERDUMPERS

Flexicon’s TIP-TITE® Drum/Box/Container Dumpers provide safe, efficient, and dust-free unloading of bulk materials from drums, boxes, and other containers. With durable construction and hydraulic tipping mechanisms, they integrate with conveyors and downstream systems, enhancing operational efficiency and safety while reducing labor costs.

Available Product Models

Flexicon’s Drum/Box/Container Dumpers, including the TIP-TITE® and Open-
Chute models are designed for dust-free or open-chute dumping of bulk
materials from drums, boxes, and other containers.

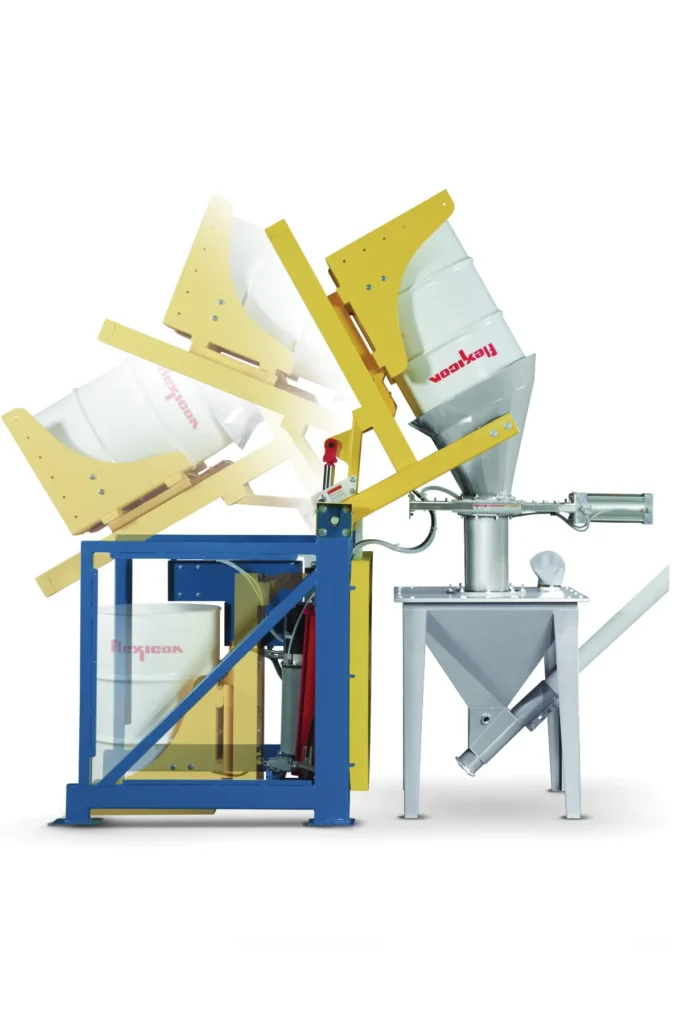

Drum Dumpers

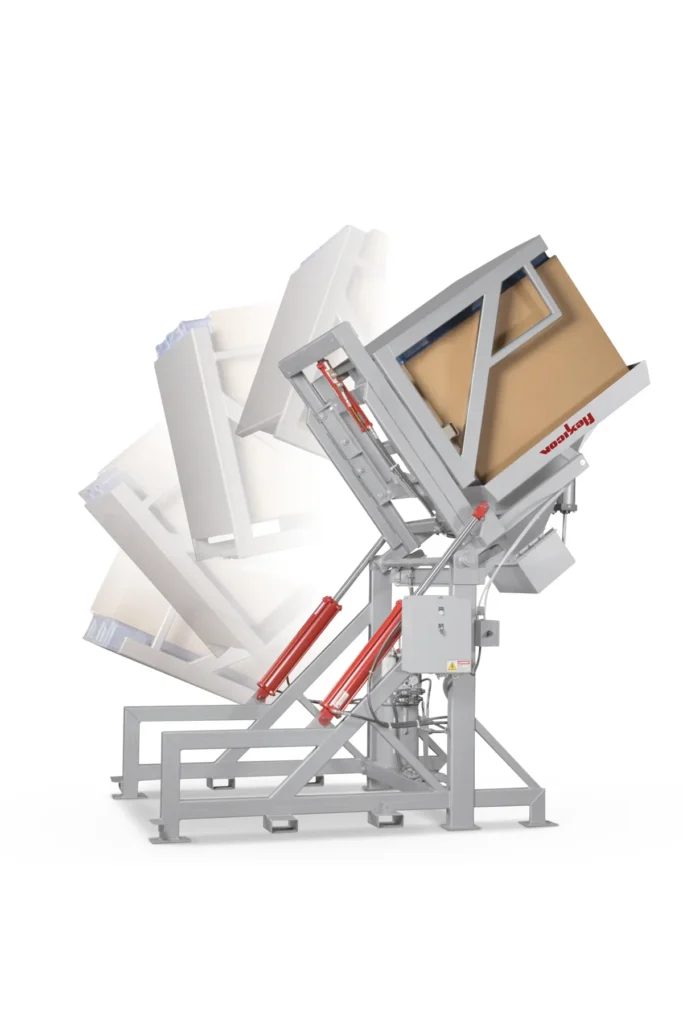

Box/Container Dumpers

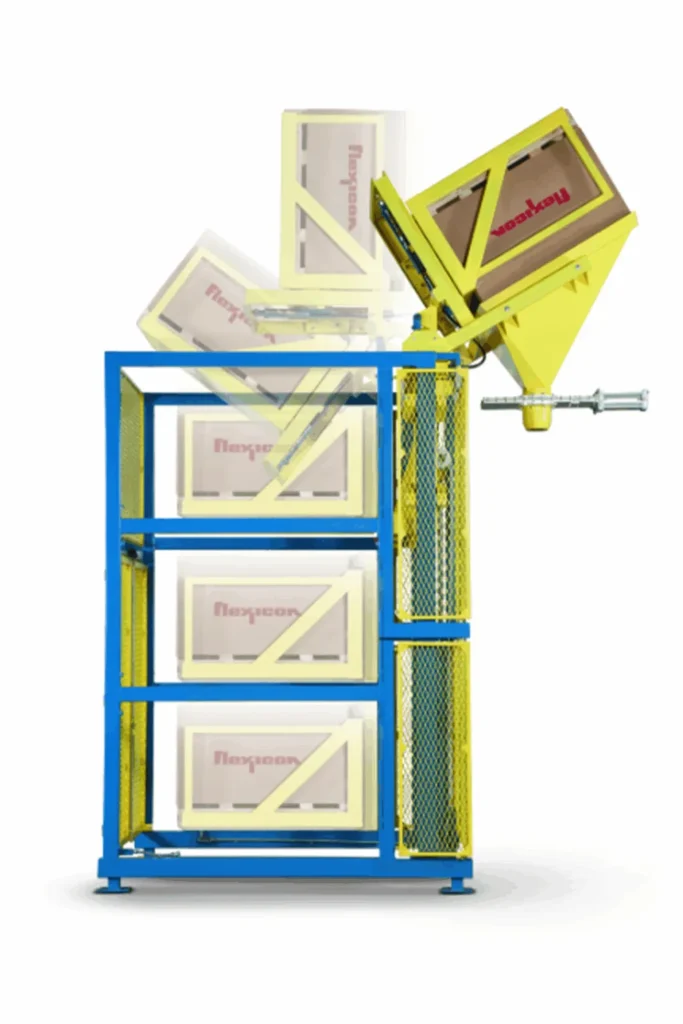

High-Lift Dumpers

Product overview

Learn everything you need to know about Flexicon Drum/Box/Container Dumpers.

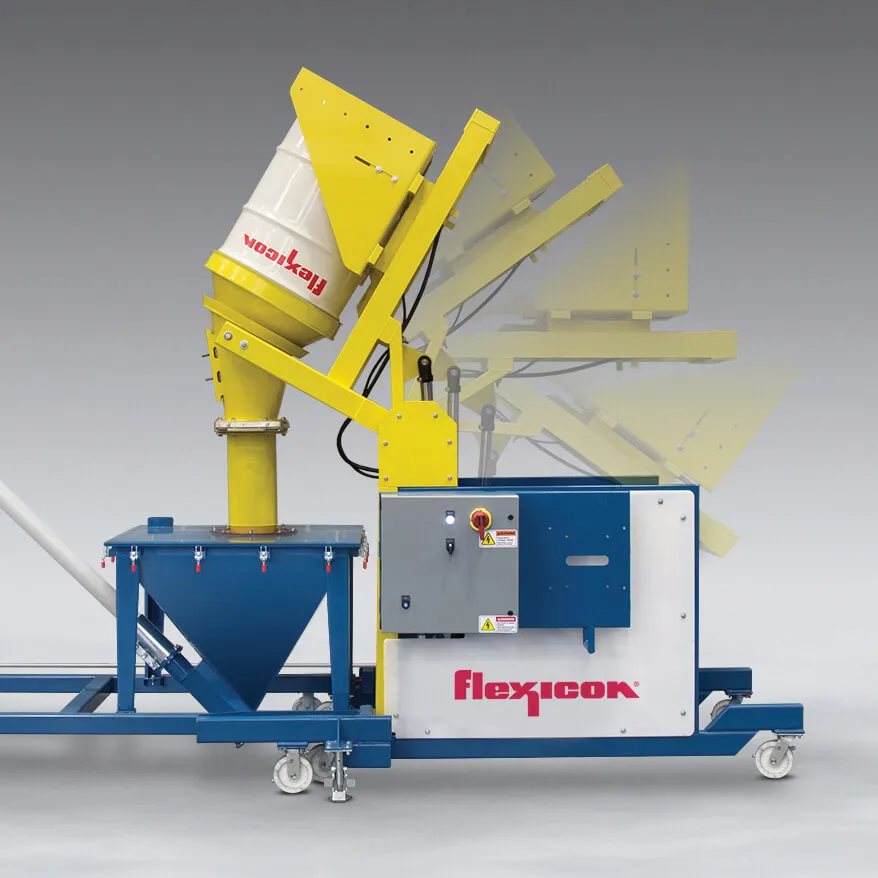

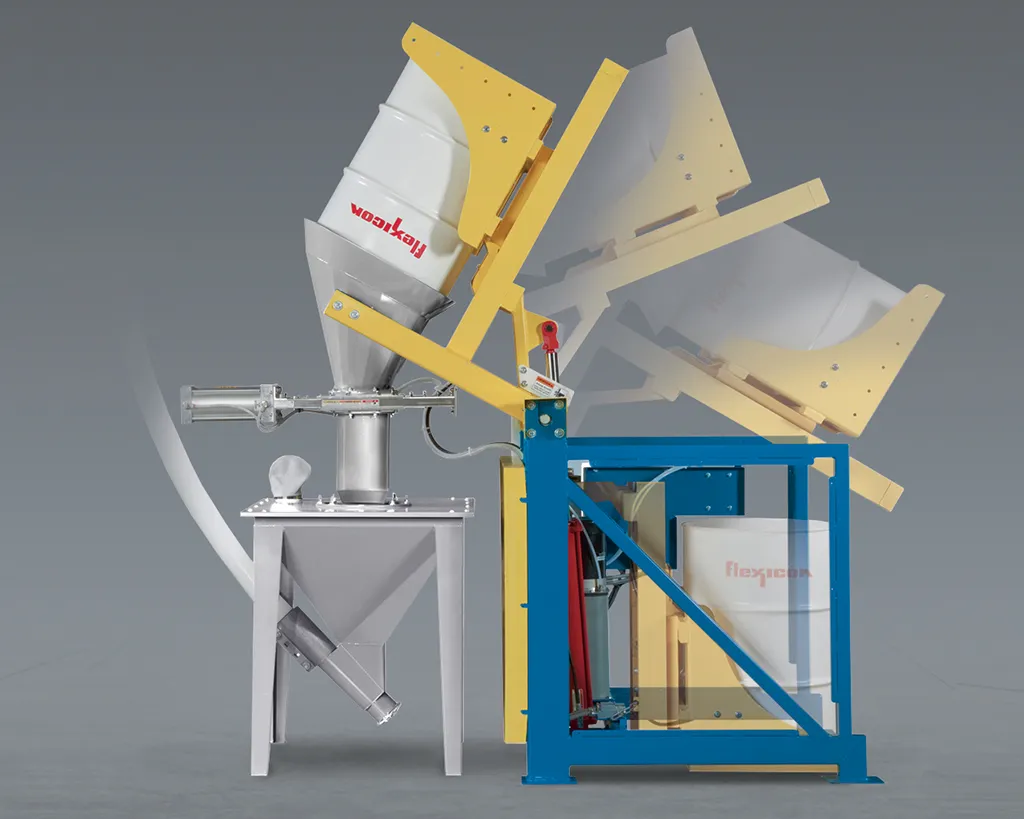

The operation of the Drum/Box/Container Dumper begins with floor level loading of the container onto a platform. A hydraulic cylinder raises the platform, pressing the container rim against a discharge cone to form a dust tight seal. Once sealed, a separate hydraulic cylinder tips the entire platform and hood assembly to a preset angle – typically 45°, 60°, or 90° -using a motion dampening feature for smooth and controlled movement. With TIP-TITE® models, when the discharge cone is properly seated against the receiving equipment, a slide gate valve opens to allow dust-free discharge of materials. When dust-free dumping is not required, all dumper models can be equipped with open-chutes without valves

Explore our flexible screw conveyor options, including mobile units, custom configurations, sanitary solutions, flow promotion features, and receiving hoppers, all designed to enhance efficiency and meet your specific material handling needs.

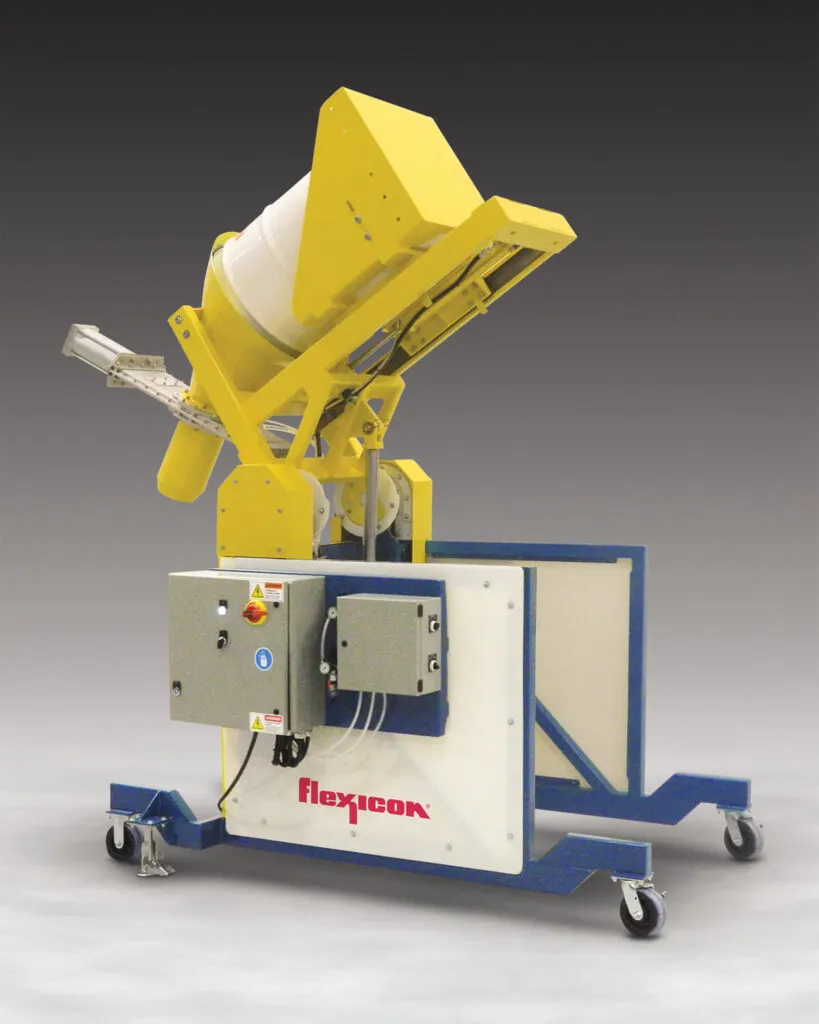

MOBILE CONFIGURATIONS

Designed for portability, mobile Drum/Box/Container Dumpers bring bulk material handling precisely where it’s needed. Each unit is mounted on a mobile frame, allowing for effortless placement throughout the plant. Once in position, quick-action floor jacks ensure stable and secure operation.

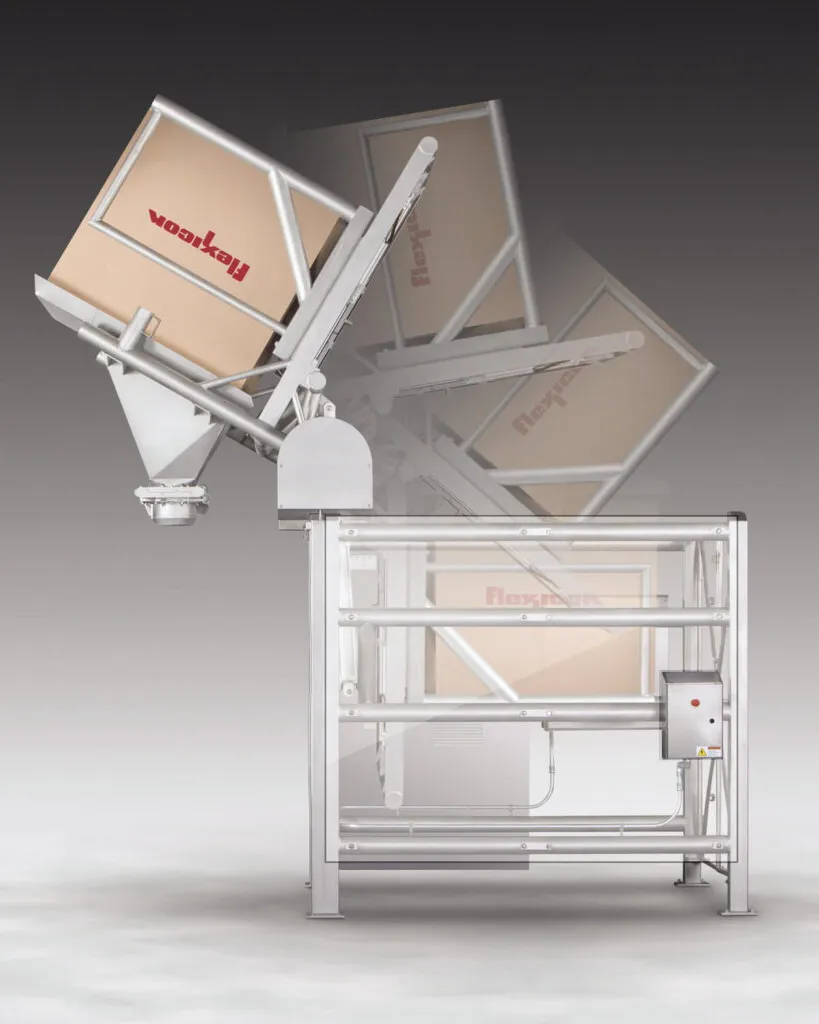

SANITARY CONFIGURATIONS

Sanitary Drum/Box/Container Dumpers are engineered for contamination-sensitive environments such as food, pharmaceutical, nutraceutical and chemical processing. Each unit features round horizontal frame members that promote efficient water drainage during wash-down and is constructed from stainless steel with continuous welds that are ground and polished to meet strict sanitary standards.

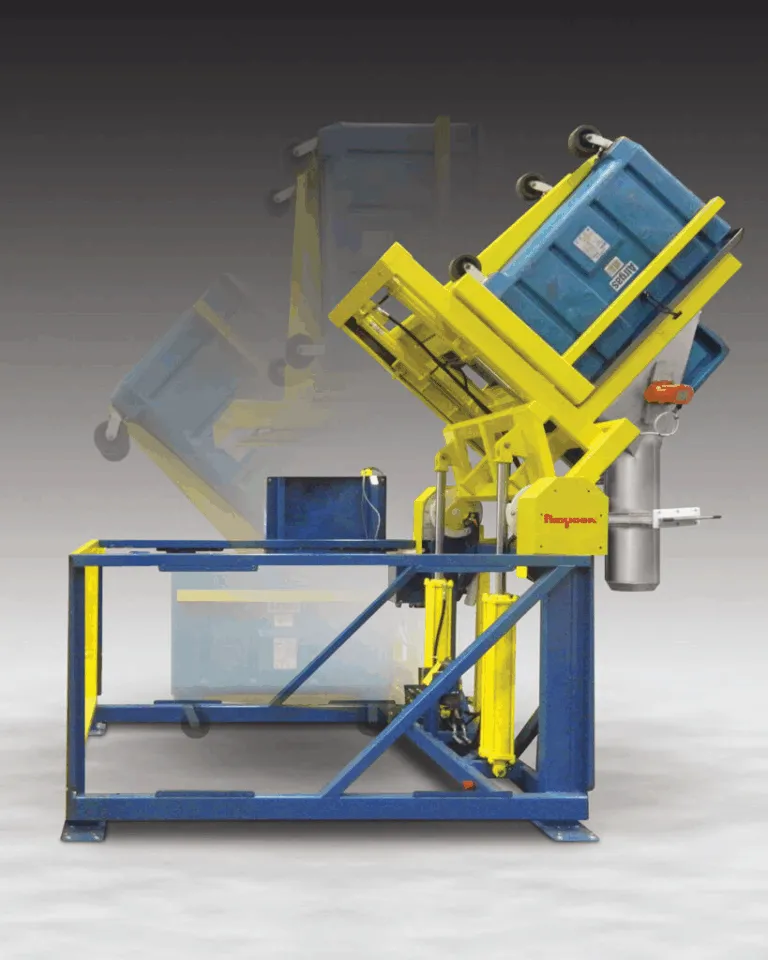

CUSTOM CONFIGURATIONS

Whether you’re handling challenging materials, high-volume loads or unique container types, Flexicon offers custom-configured Drum/Box/Container Dumpers engineered to meet your specific process requirements. Available options include models for drums, pails, and mobile bins; systems designed to empty multiple containers simultaneously; and designs that integrate directly with downstream conveyors. Every unit is built for reliable performance and smooth integration into your operation.

Product Features

Drum/Box/Container Dumpers offer a range of advantages to improve your bulk handling processes.

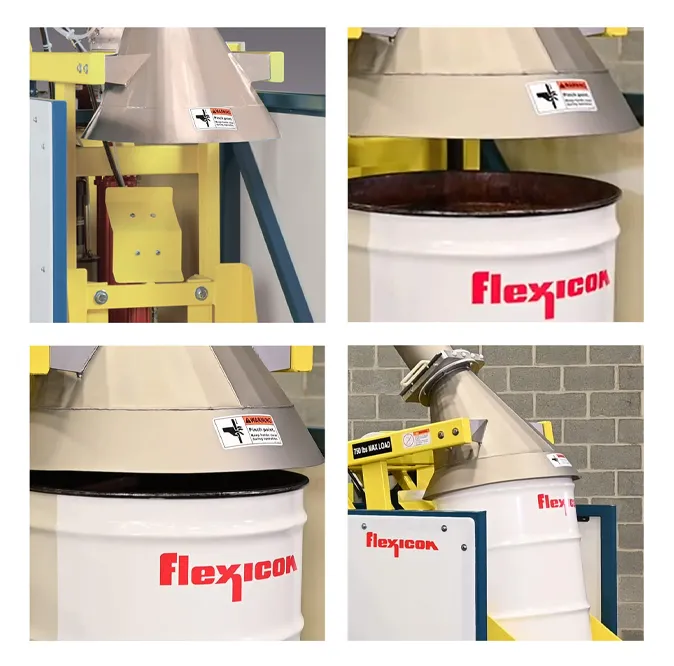

Container Platform

To initiate the discharge process, the container platform is hydraulically elevated until the rim of the container contacts the underside of the discharge cone. This alignment forms a secure, dust-tight seal that prevents spillage and contamination. Once the seal is established, the platform tilts to a controlled angle of 45, 60, or 90 degrees, enabling complete material discharge into the receiving vessel.

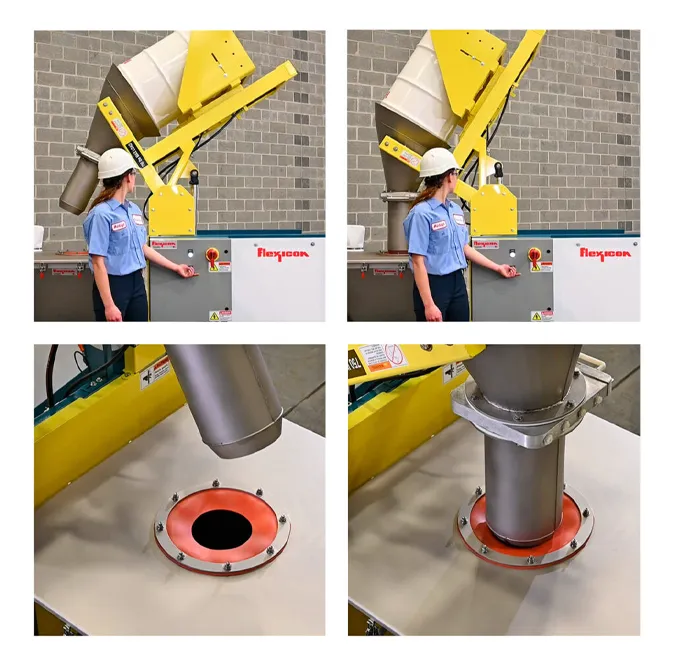

Discharge Cone

The TIP-TITE® discharge cone creates a secure, dust-tight connection between the container and the receiving vessel, preventing the escape of dust during material transfer. The container rim seals against the discharge cone, which mates with a gasketted inlet port on the receiving vessel, forming a fully sealed system that keeps airborne particulates contained and the work environment cleaner and safer.

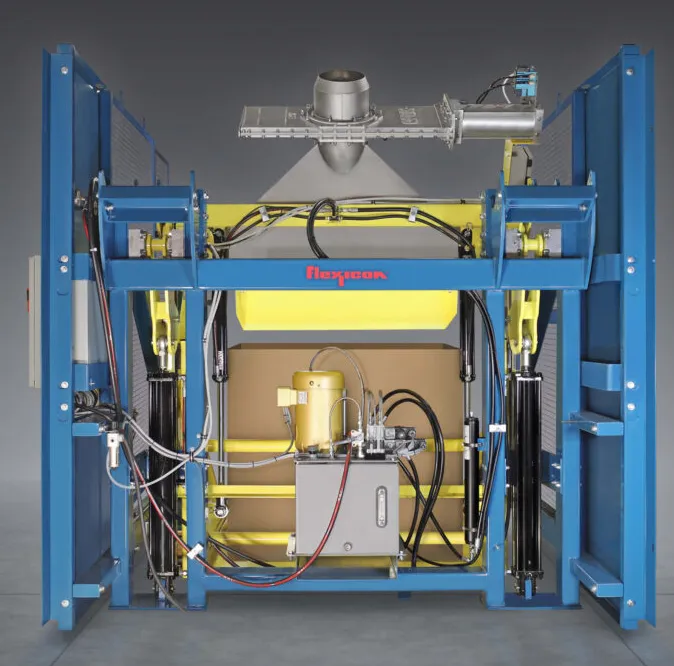

Dedicated Tilting Hydraulics

Dedicated hydraulic tilting cylinder or cylinders are employed to tip the platform-hood assembly and container. This provides precise control over the tipping angle and includes a motion-dampening feature to ensure smooth operation. The tilting cylinder design enhances reliability and performance, especially under constant use in plant environments.

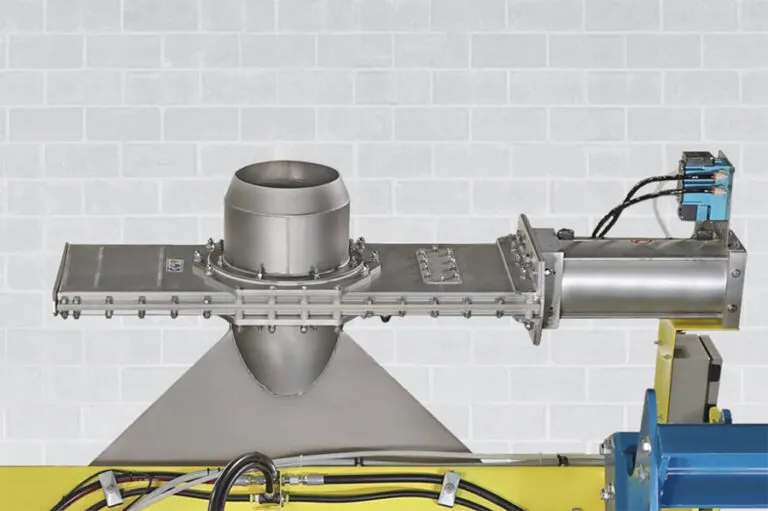

Slide Gate Valve

With TIP-TITE models, a slide gate valve positioned at the end of the discharge cone pneumatically or manually controls the flow of materials from the container. Once the discharge cone is properly seated against the receiving vessel, the valve is opened to allow material transfer. This mechanism ensures dust-free discharge and provides operators with control over the material flow, contributing to a safer and more efficient handling process.

Product Benefits

Dust-Free Operation

TIP-TITE® Dumpers ensure clean, dust-free handling by securely raising and rotating containers to form a dust-tight seal with the receiving vessel. A gasketted connection, along with controlled discharge via pneumatic or manual slide gates, keeps materials fully contained and protects workers, equipment, and the surrounding environment.

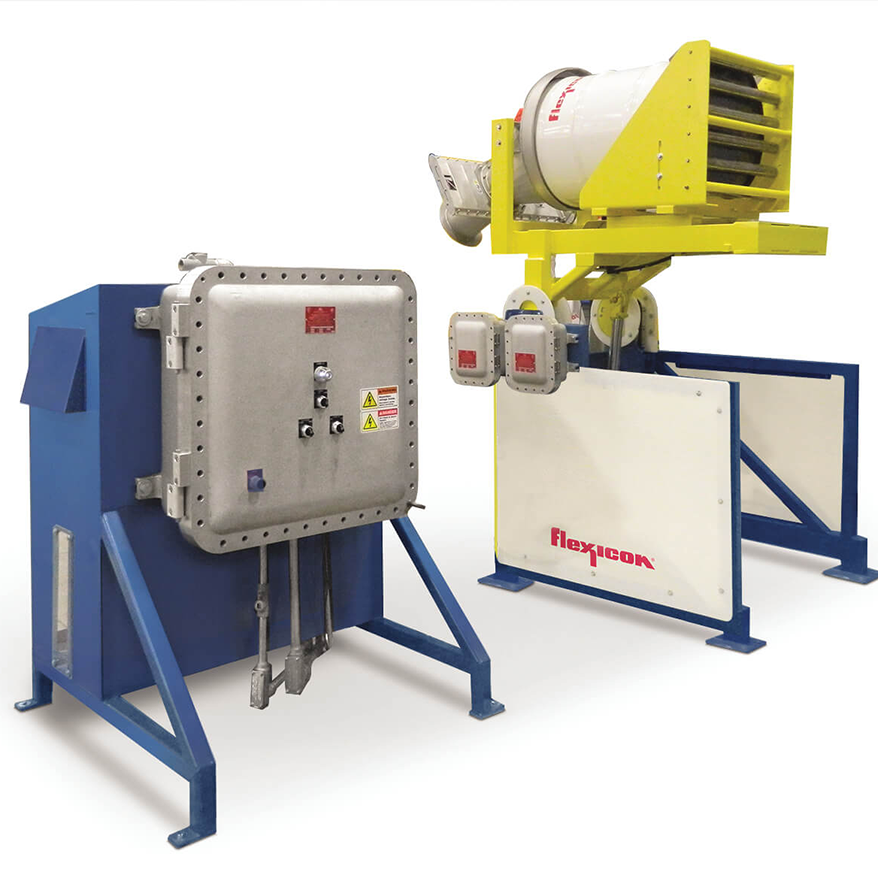

Enhanced Workplace Safety

TIP-TITE® Dumpers improve safety by eliminating the ergonomic risks of manual handling. Automated controlled operation reduces strain and exposure, while built-in features meet rigorous global safety standards, ensuring a safer, more efficient process.

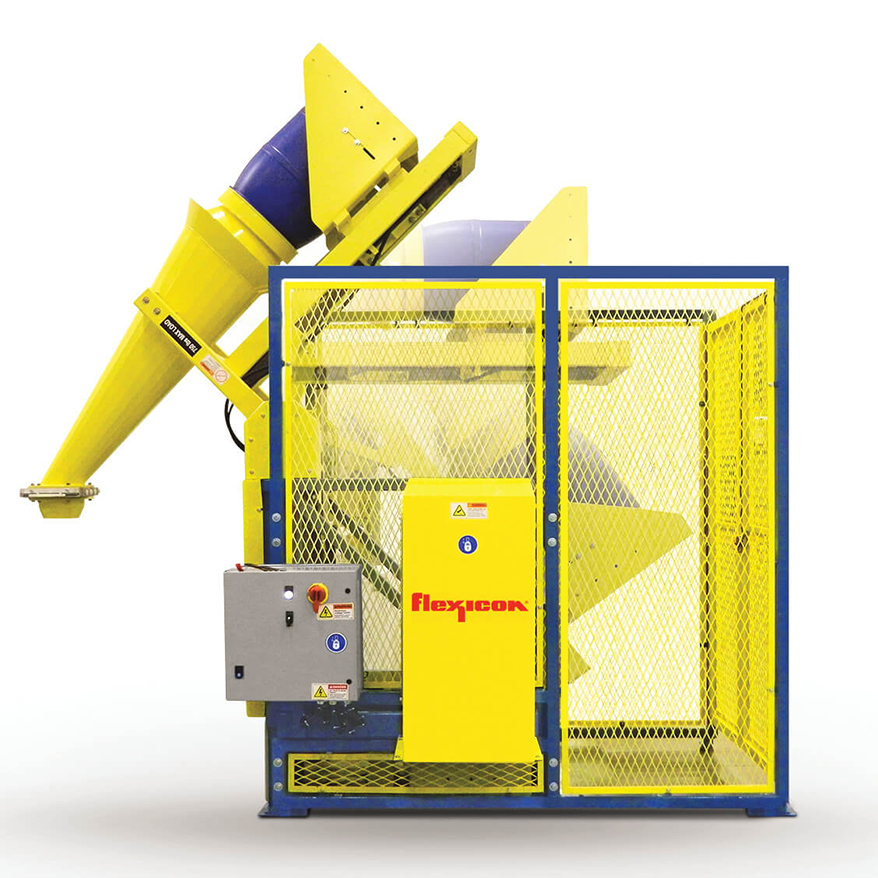

BUILT FOR PERFORMANCE

Engineered for heavy-duty use, TIP-TITE® Dumpers feature precision-built components and rugged construction that ensure reliable performance.

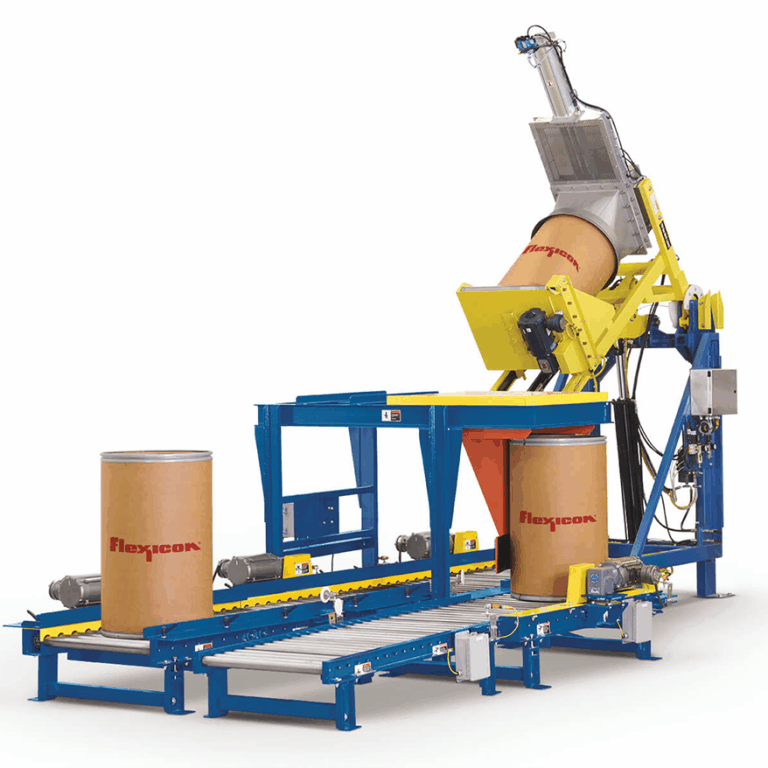

IMPROVE OPERATIONAL EFFICIENCY

Designed for smooth, safe, and dust-free operation, TIP-TITE® Dumpers optimize repetitive dumping tasks to reduce labor requirements and minimize downtime. Their reliable performance improves overall efficiency, helping you lower operating costs and accelerate return on investment.

Drum/Box/Container Dumper Configurations

Flexicon can design your drum/box/container dumper to meet your unique needs. Explore
some of the configurations we have developed for customers like you.

Drum Dumpers

Box/Container Dumpers

High-Lift Dumpers
